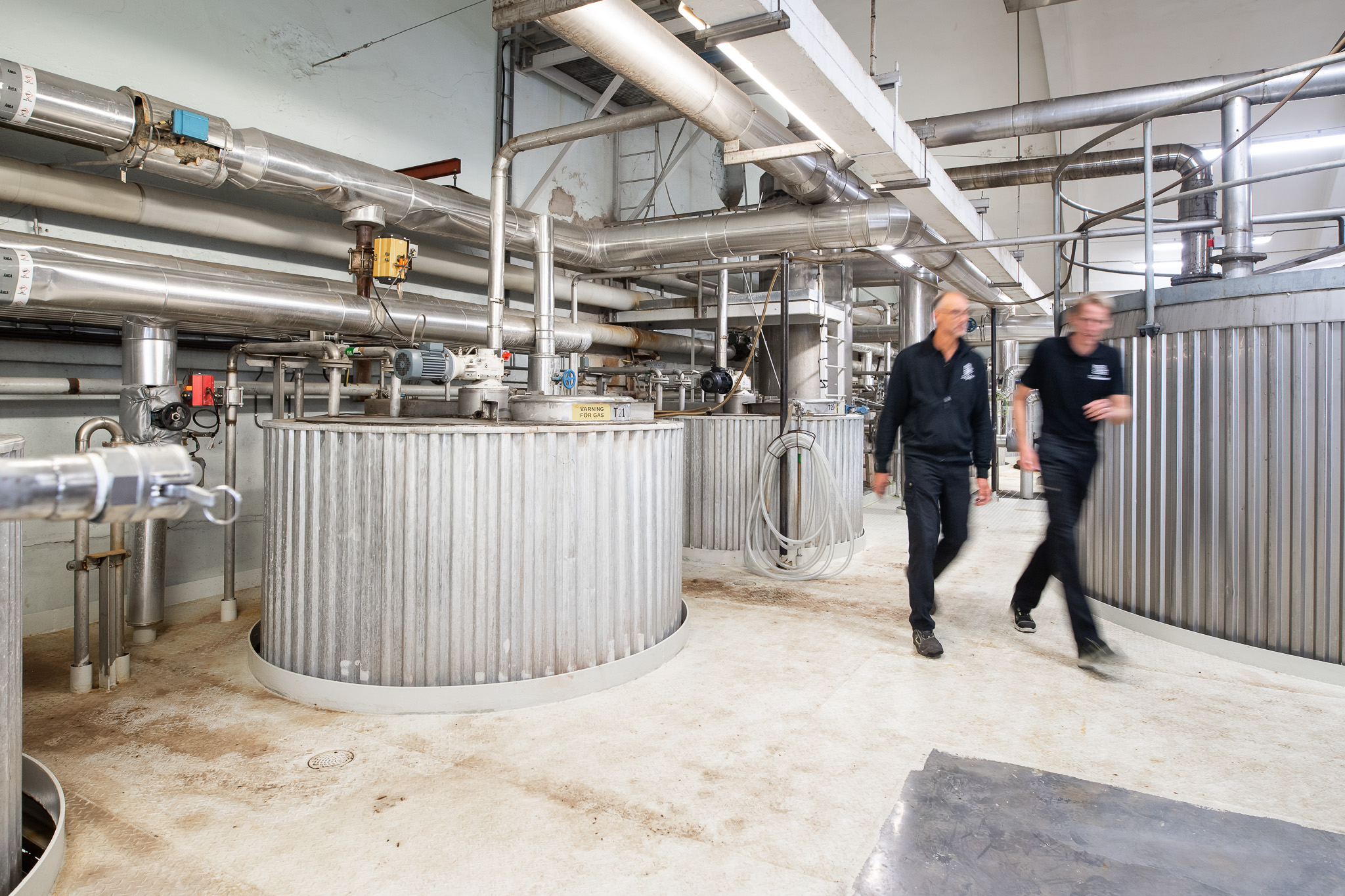

RISE LignoCity

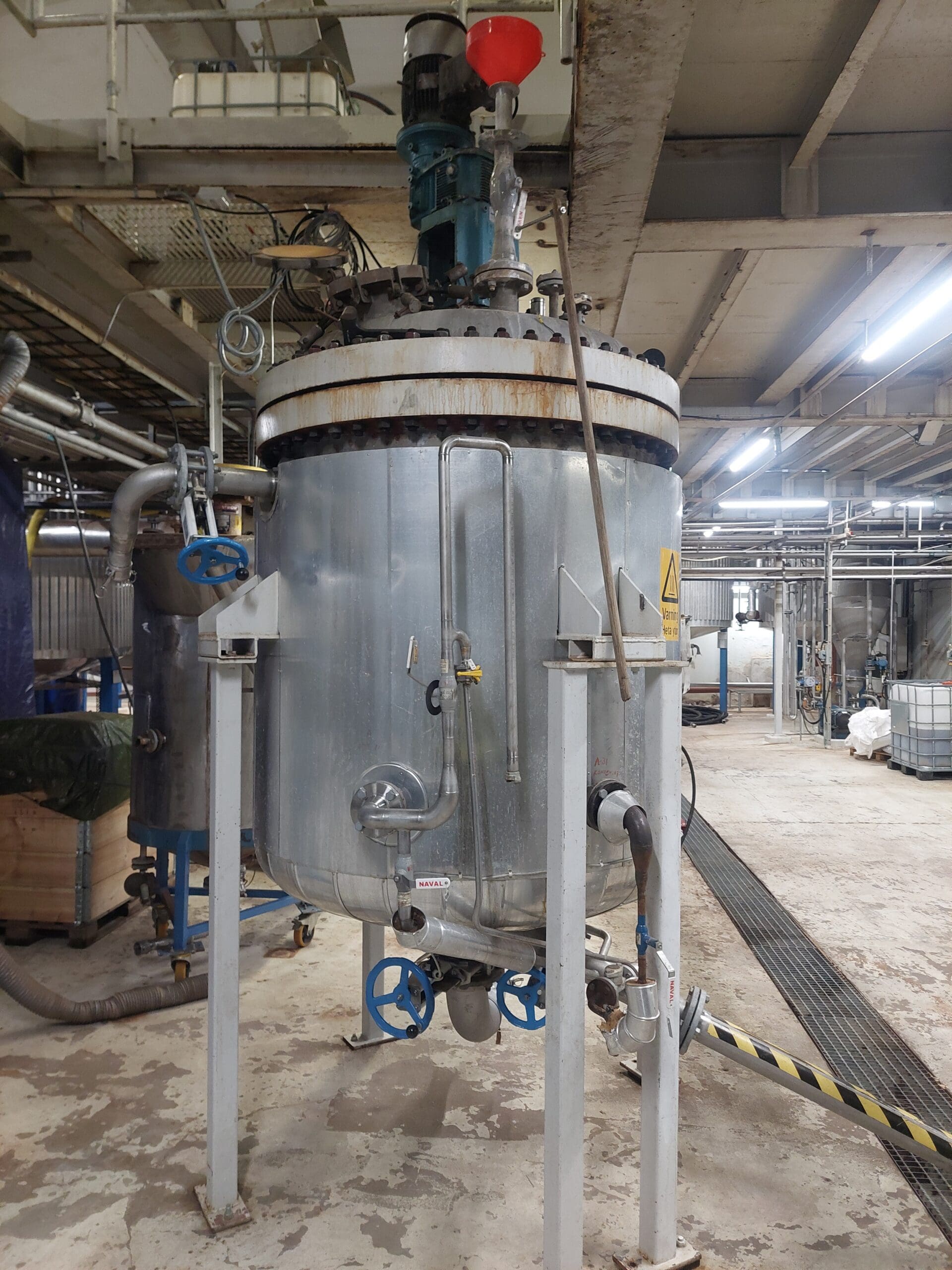

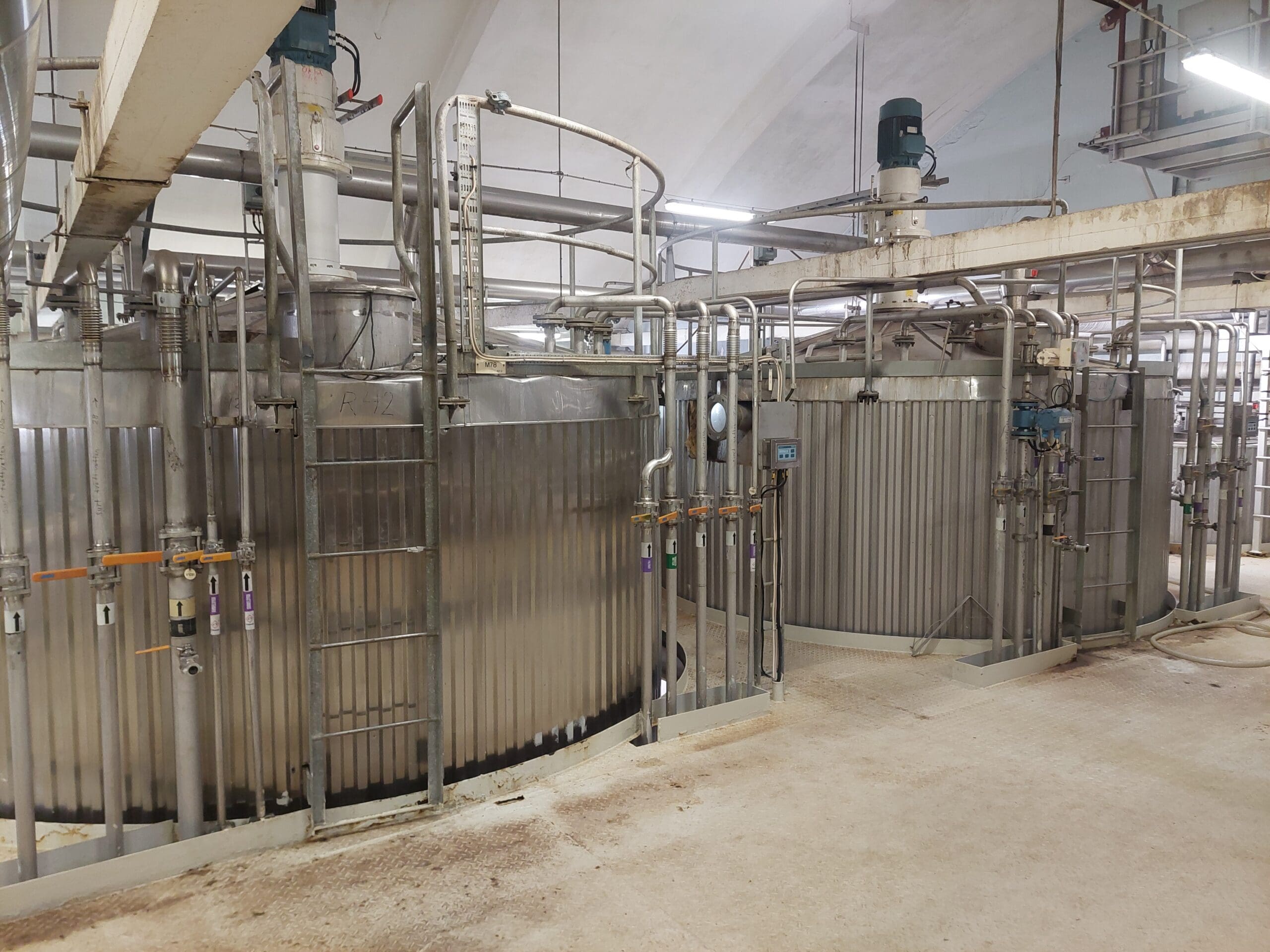

Pilot- and demo-scale reactors for lignin precipitation, acidification and heat treatment.

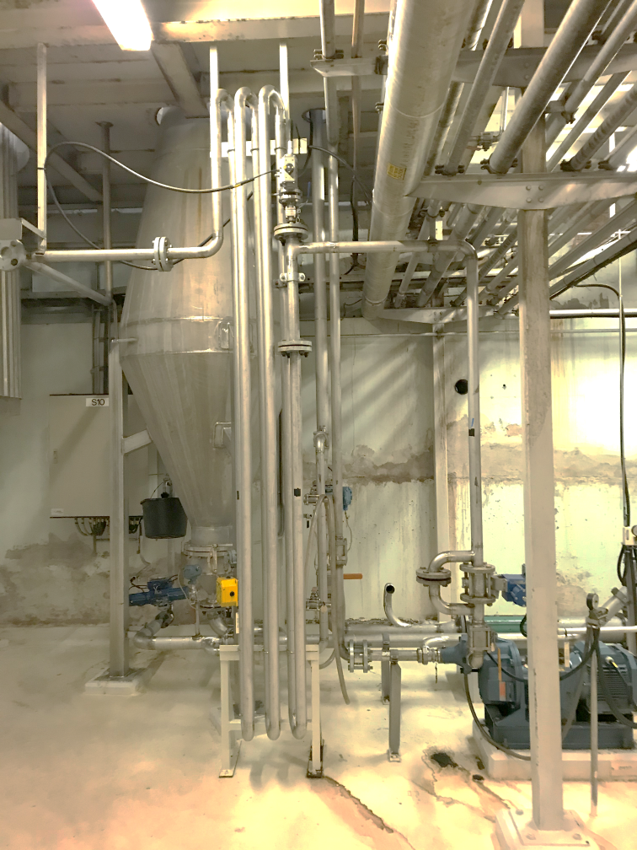

Multiple modes of precipitation operation:

• Continuous pressurized tube reactor
• Continuous pressurized tank reactor
• Sparged batch reactor

Full integration with downstream processing.

Flexible and adaptable process configuration according to customer needs.

Contact for this technology

Pilot- and demo-scale filtration equipment.

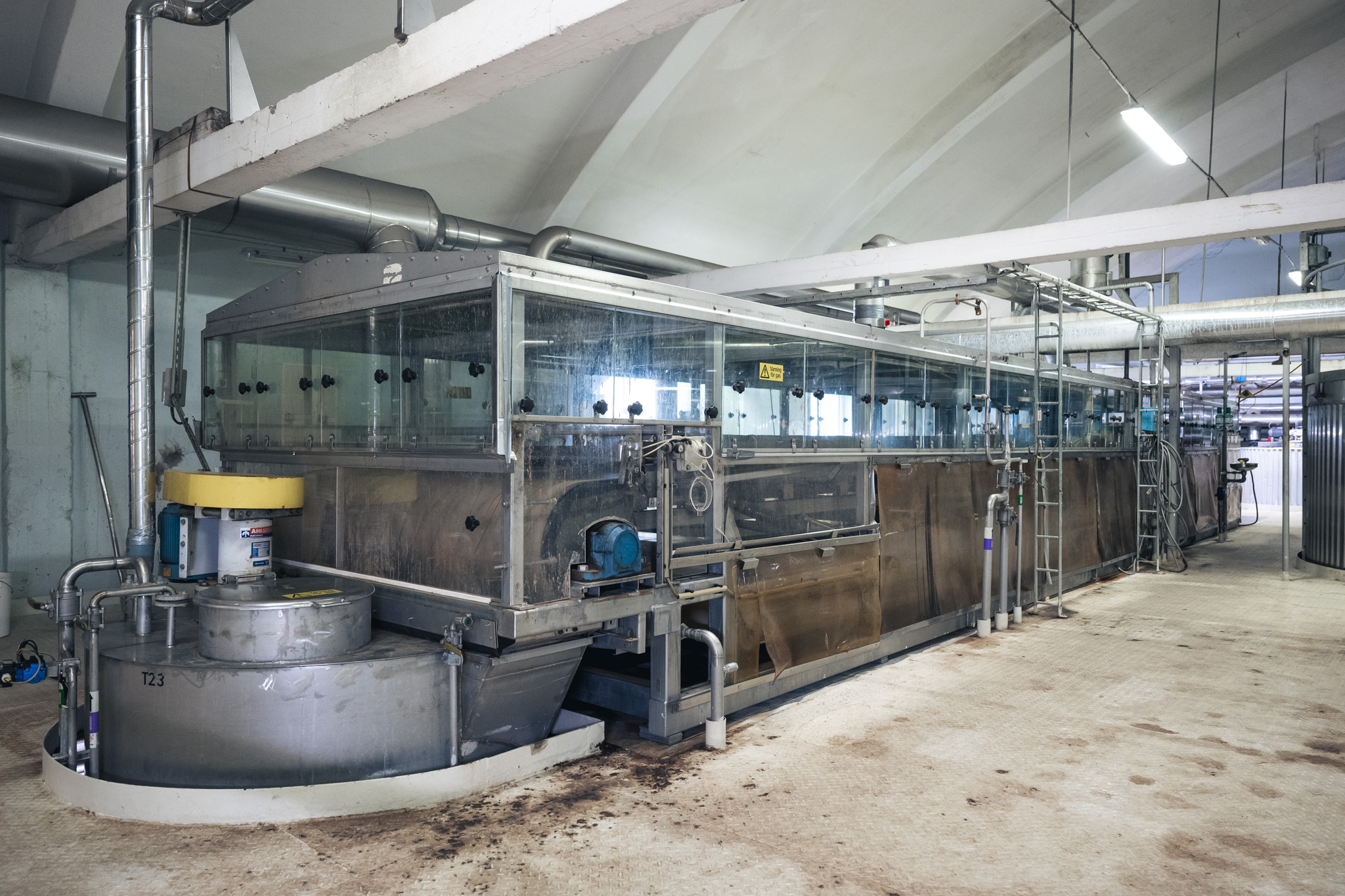

• Continuous belt filter with washing

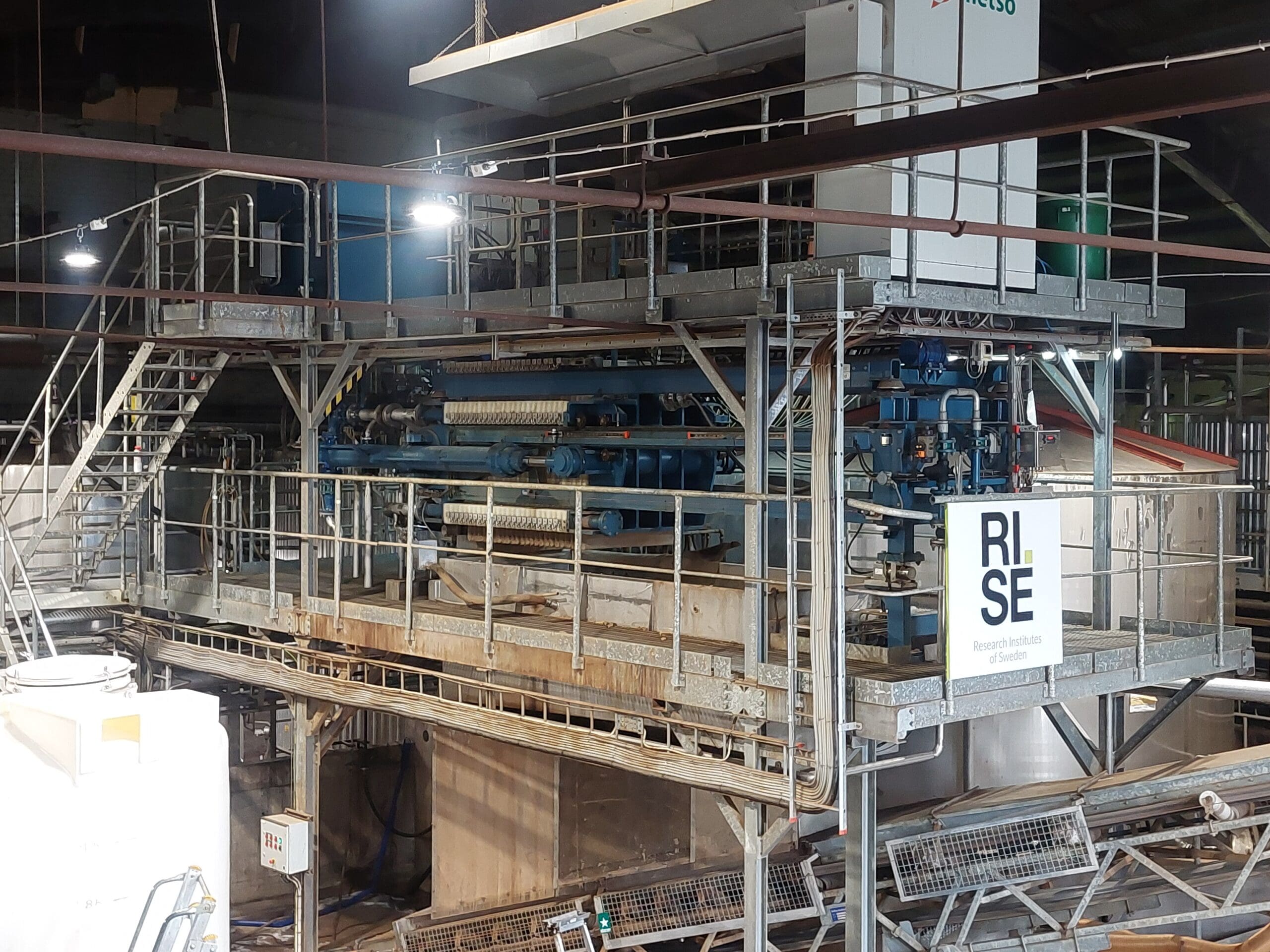

• Vertical plate pressure filter with airblow and displacement washing

Flexible and adaptable process configuration according to customer needs.

Contact for this technology

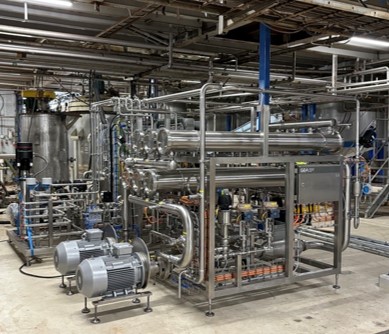

A sequence-controlled ultrafiltration (UF) pilot unit designed for lignin-containing products. The system operates at up to 16 bar and handles feed flows of approximately 300 – 20,000 l/h. It consists of two independently operated membrane loops with diafiltration capability (diawater pump able to deliver up to 16 bars at 5 m3/h), allowing operation in serial or parallel modes and adjustable concentration levels. The unit supports fed-batch and continuous processing.

Both of the loops are equipped with 3 x 8040 membrane housings (flexible membrane area adjustment), mass flow meters, temperature and pressure instrumentation, and variable-speed pumps optimized for high-viscosity fluids (up to ~100 cP). Integrated automation includes PLC/HMI control and advanced monitoring via GEA SmartFiltration. The unit operates in a temperature range of 25–80°C and includes adjustable cleaning (CIP) programs.
