BOKU Core Facilities: BioIndustrial Pilot Plant / Food & Bio Processing
Log in or create an account to access more information
Photo gallery
Video gallery
Technology Areas & scope
Fermentation and digestion
Number of units4 units
Capacity10 - 150 L
Summary of Biomass and precision fermentation

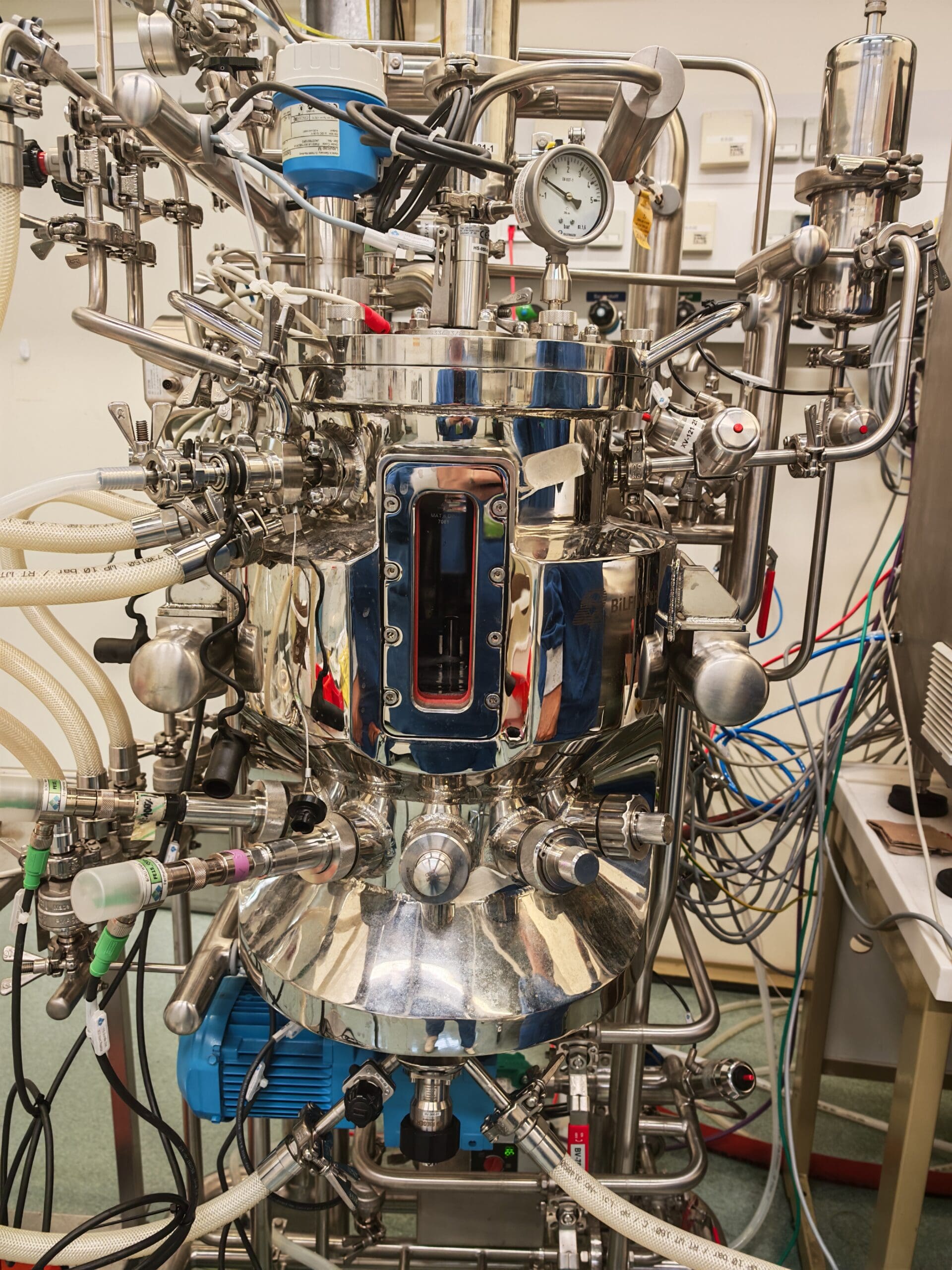

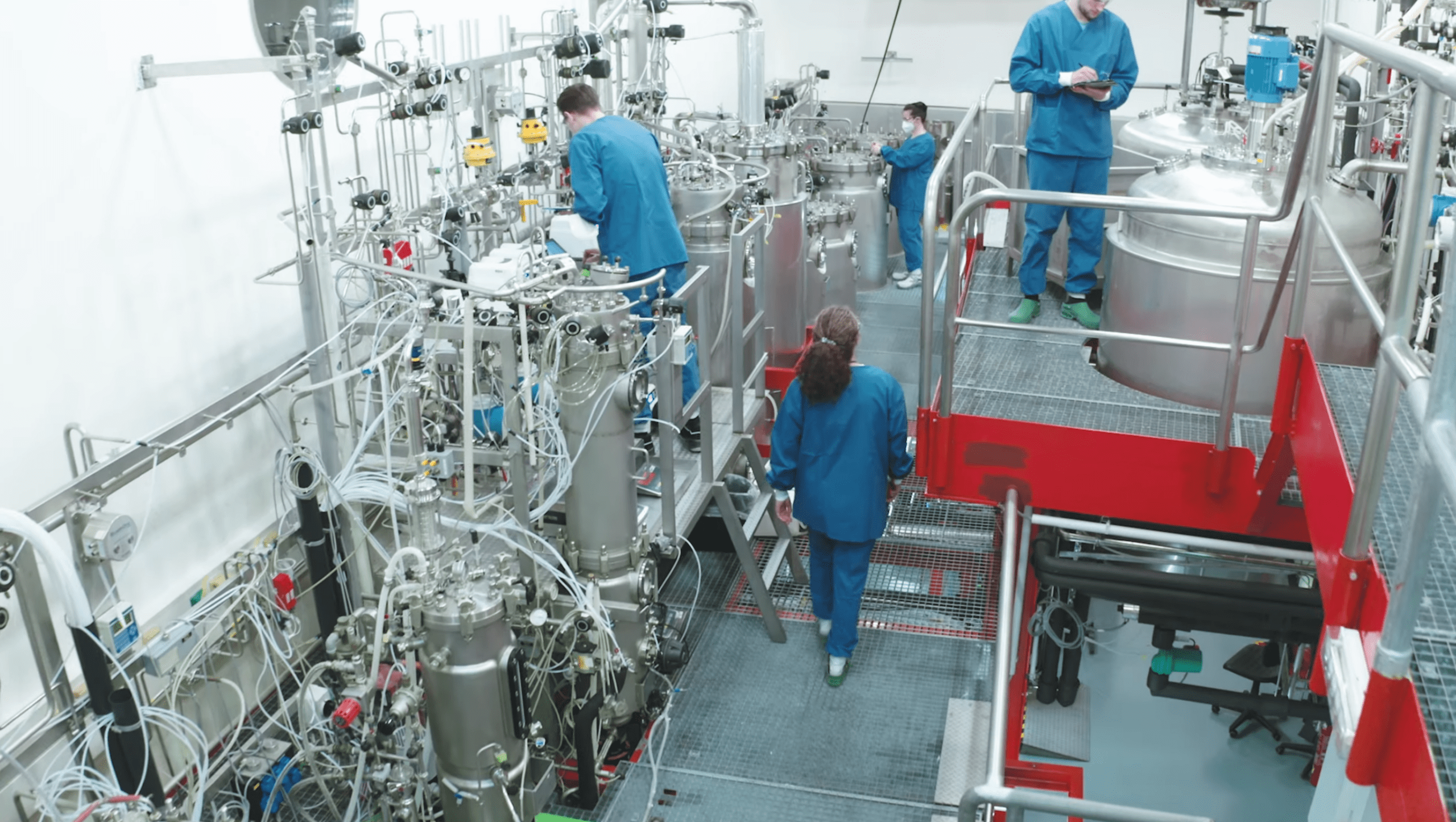

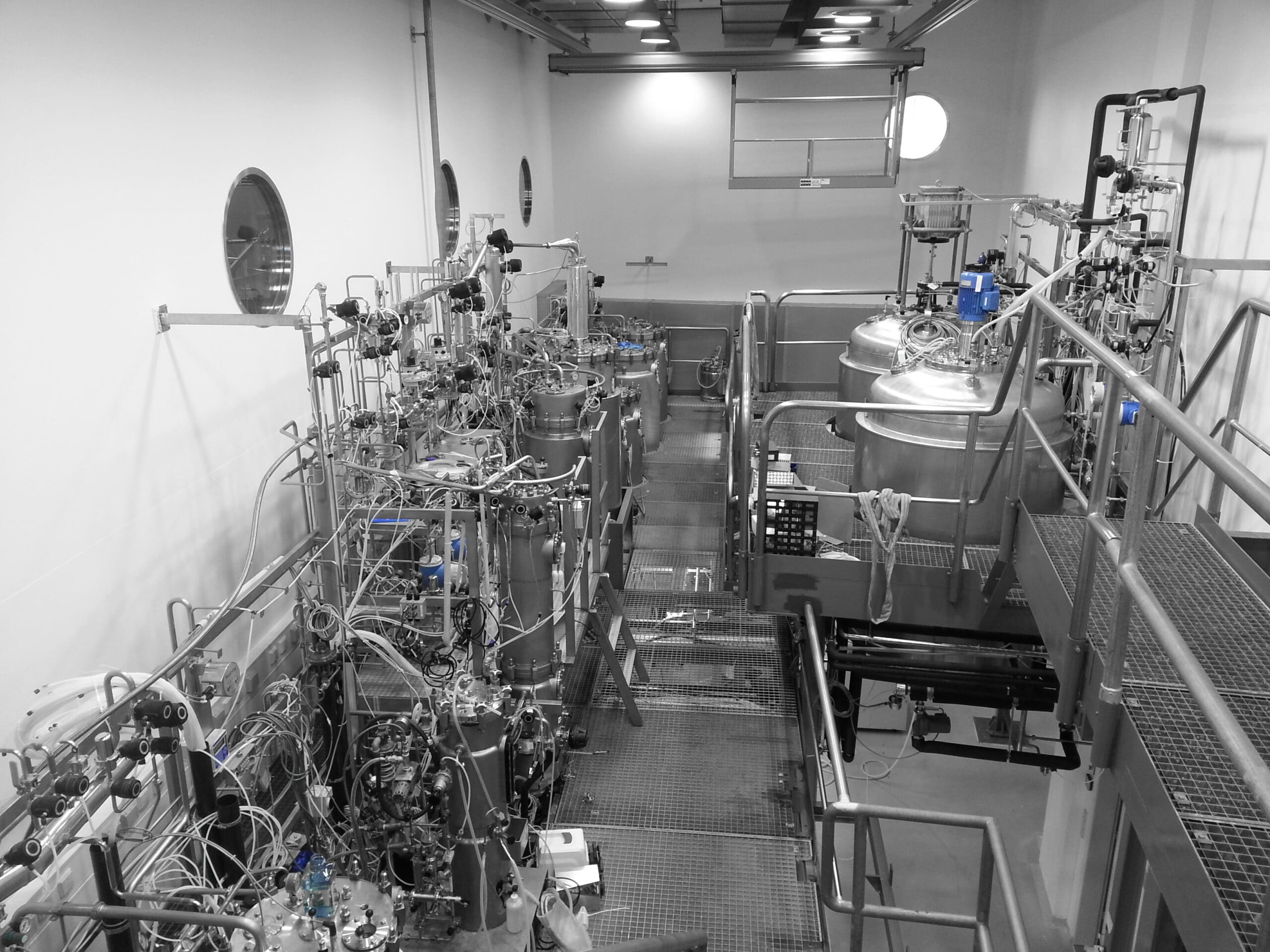

State-of-the-art bioreactors for cultivation of microorganism on different scales.
Sterile stirred tanks with high oxygen transfer for batch and fed-batch fermentation of bacteria, yeast, fungi.
Different feeding strategies are possible and can be adapted according to customer specifications.
Methanol induction possible.
Fully automated with a Siemens PCS7 GAMP5 conform process control system and ISA-88 conform Simatic® Batch program.
All bioreactors are also equiped with standard sensors, e.g. DO, pH, and a mass spectrometer for off-gas analysis for calculation of CER and OUR.
Image gallery
Contact for this technology
NameMarkus Luchner
Technology / Equipment webpageVisit website
Separation technologies
Mechanical separation
Number of units3 units
Capacity1 - 150 L/h
Summary of Centrifugation
-) Benchtop centrifuge with swing-out rotor
-) High performance centrifuge with continuous feed and discontinuous discharge (Contifuge); 22.000 g, solid volume 0.3 L

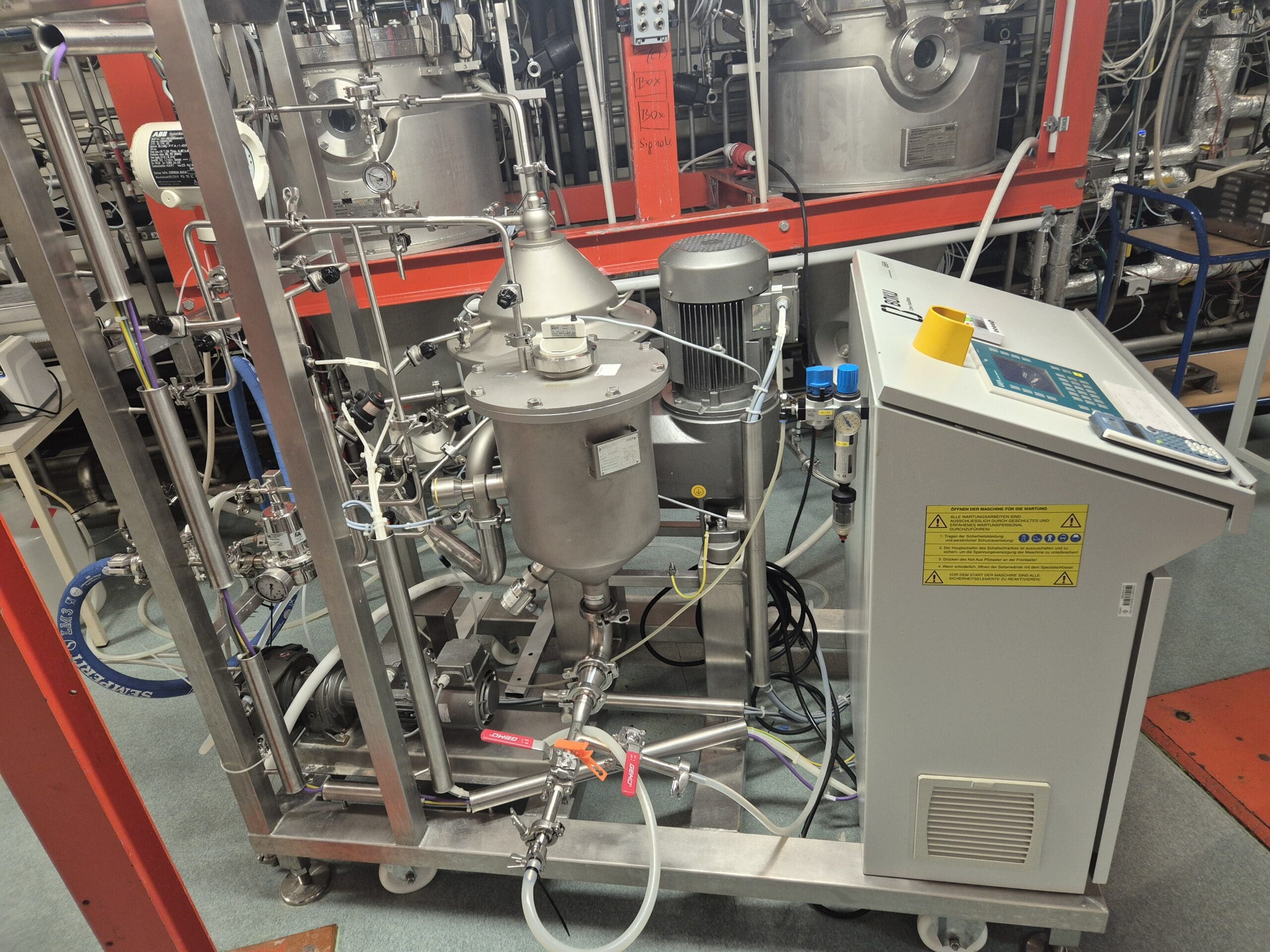

-) Disc-stack centrifuge (GEA PSC-8) with 8000 m2 equivalent clarification area; 30-200 L/h throughput
Image gallery
Contact for this technology
NameMarkus Luchner
Technology / Equipment webpageVisit website
Number of units2 units
Capacity0.05 - 2 m²
Summary of Membrane filtration

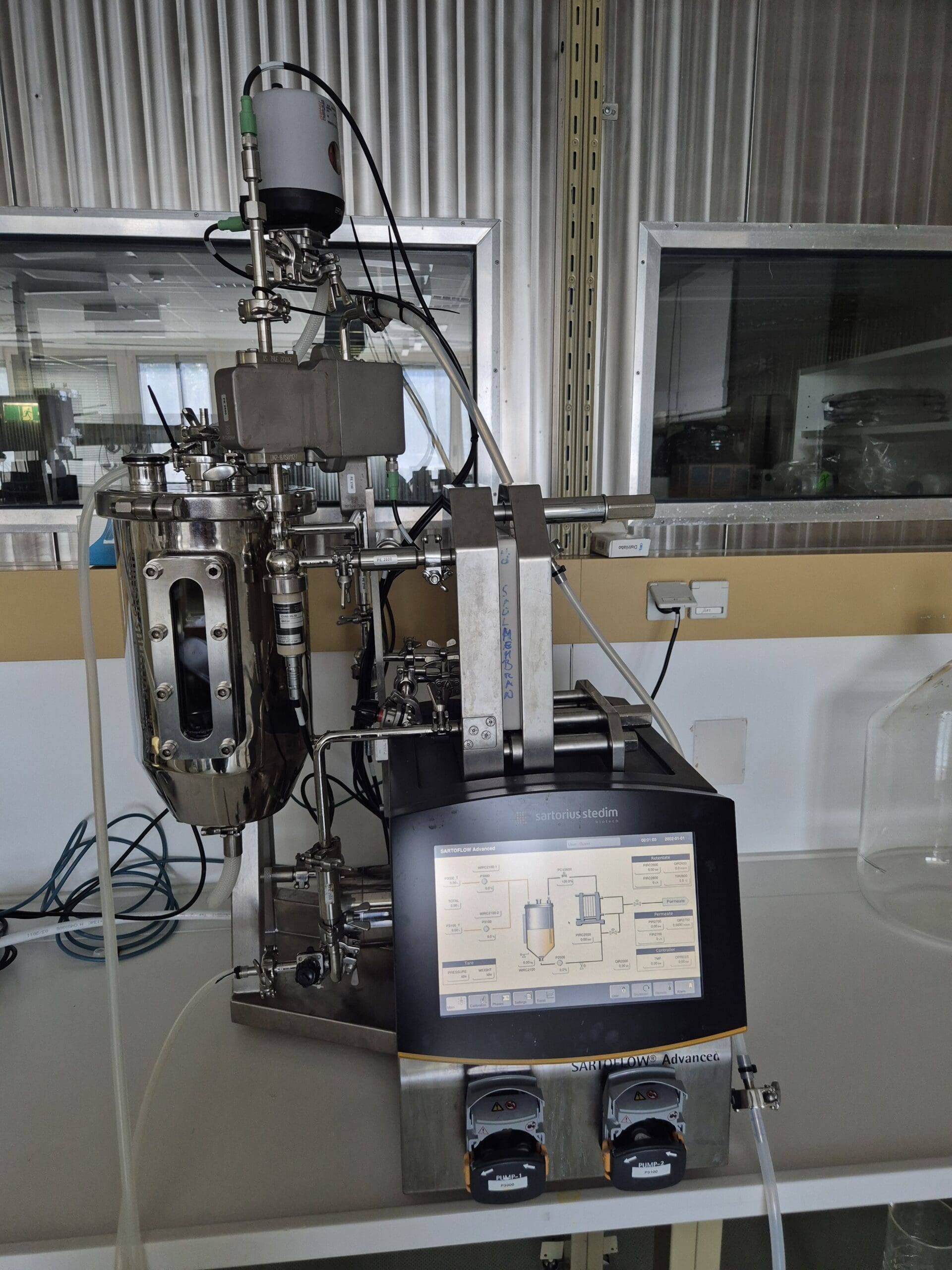

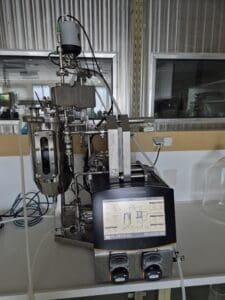

Sartoflow Advanced system:
- Small scale system (50 – 300 cm2)
- Pilot scale system (up to 2 m2 membrane area)
- Ultra-, Micro-, Dia-Filtration
Automated recording of all system data (pressure, fluxes, etc.)
Systems can be operated in different control modes
(constant flux, constant trans membrane pressure, min and max inlet pressure)
Image gallery
Contact for this technology
NameMarkus Luchner
Technology / Equipment webpageVisit website
Number of units1 units
Capacity0.5 - 15 L/h
Summary of Membrane filtration
Core Facility Food and Bio Processing offers:
- Membrane Filtration:
- MF
- UF
- NF
- Diafiltration
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Number of units2 units
Capacity0.01 - 1 kg
Summary of Particle classification and sieving
- Sieving machine

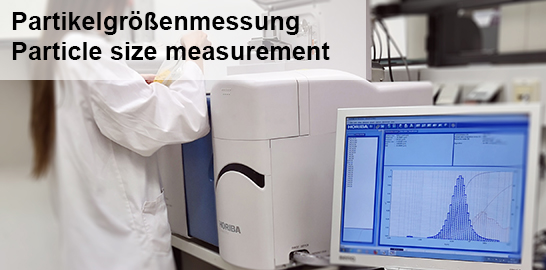

- Particle Size Analyzer
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Physicochemical separation
Number of units4 units
Capacity1 - 40 L/h
Summary of Chromatography

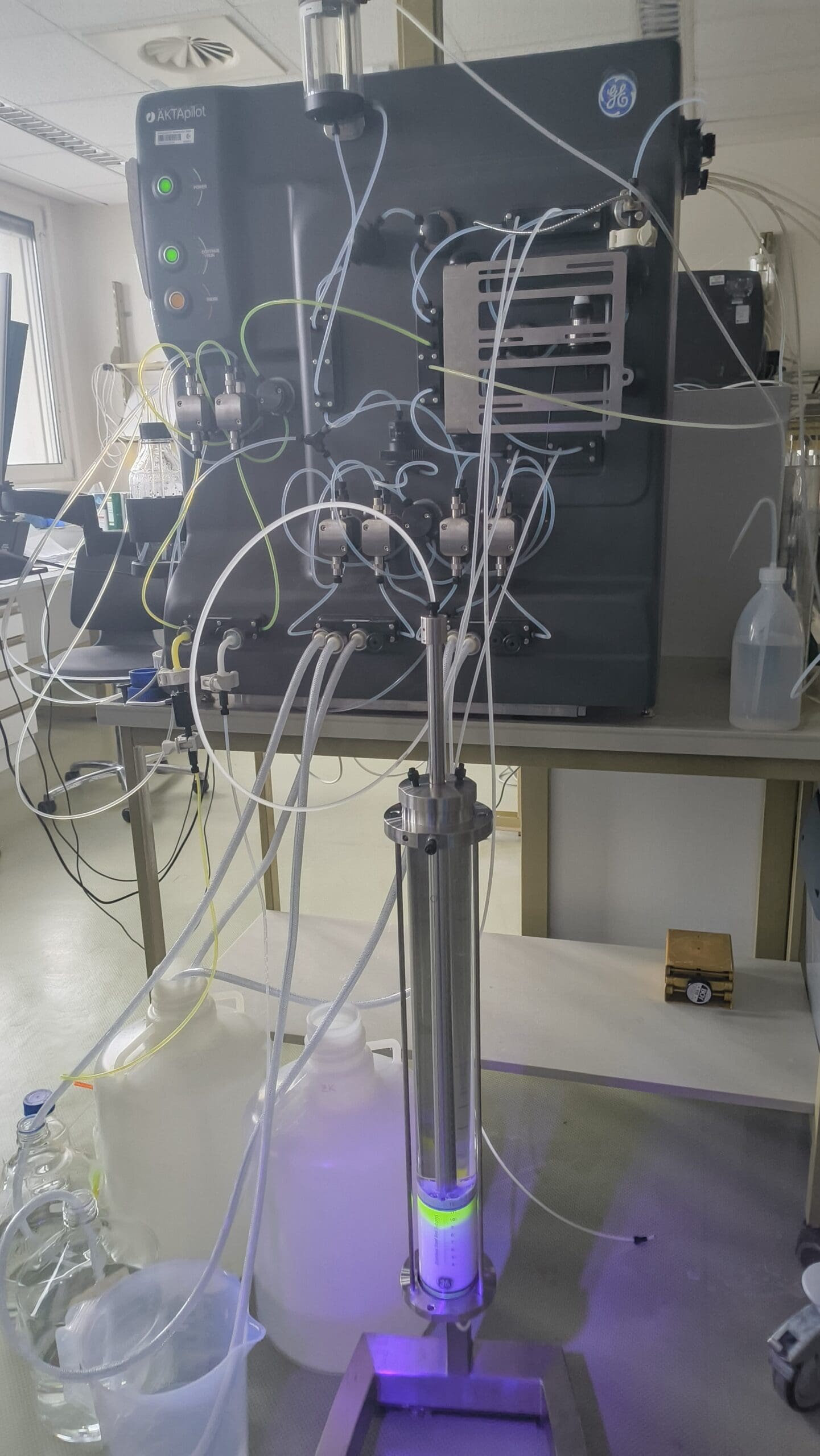

ÅKTA explorer 10 and 100:
for development and small-scale preparative purification
2 ÅKTA Pilot:
for pilot scale chromatography up to 40 L/h
column size 0.5 – 10 L
Image gallery
Contact for this technology
NameMarkus Luchner
Technology / Equipment webpageVisit website
Number of units1 units
Capacity0.001 - 0.8 L/day
Summary of Drying
Christ alpha 2-4 Lyophilization device for freeze drying of biological and organic substances
Image gallery
No images provided.
Contact for this technology
NameMarkus Luchner
Technology / Equipment webpageVisit website
Number of units5 units
Capacity1 - 50 kg
Summary of Drying
Core Facility Food and Bio Processing offers:

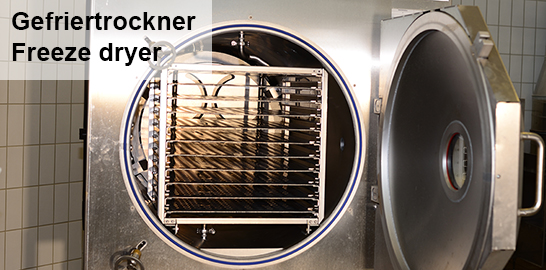

- Freeze Dryer lab scale
- 4 kg/batch
- Freeze Dryer pilot scale
- 50 kg/batch
- Drum Dryer
- 15 kg/h

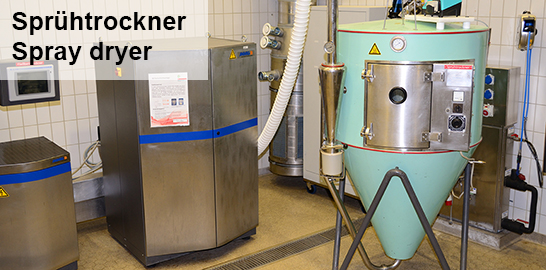

- Spray Dryer pilot scale
- 0,8 kg/h
- Spray Dryer lab scale
- 5 kg/h
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Number of units1 units
Capacity0.5 - 2 L
Summary of Extraction
Core Facility Food and Bio Processing offers:

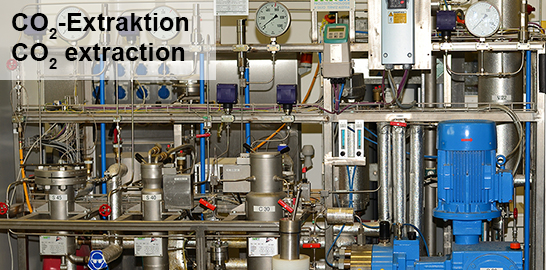

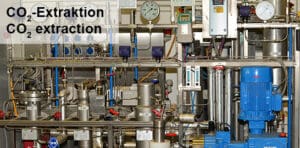

- Supercritical CO2 Extraction (Natex Pilotanlage)
- 2 L/batch
- co-solvent injection possible (e.g. Ethanol)
- max. extraction temp 80°C
- max. pressure 500 bar
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Number of units2 units
Capacity10 - 100 L/h
Summary of Mechanical separation
Core Facility Food and Bio Processing offers:
- Decanter centrifuge (for separating solids and liquids)
- 5000 rpm
- 2100 g
- 10-100 L/h
- Disc Separator (SA1 Westfalia)
- max. 1000 rpm
Image gallery
No images provided.
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Extraction
Number of units2 units
Capacity0.01 - 5 L
Summary of Pulsed Electric Fields processing
Core Facility Food and Bio Processing offers:

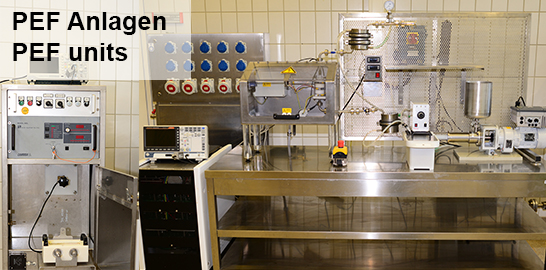

- PEF – Pulsed Electric Fields (DIL)
- 1-4Hz
- max. 30 kV
- Batch
- PEF – Pulsed Electric Fields (Scandinova)
- 1-1000 Hz
- μs square pulses
- max. 25 kV
- Batch and continuous
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Size reduction and homogenisation
Number of units2 units
Capacity1 - 100 L/h
Summary of Homogenization
Two-stage high pressure homogenizer up to 1000 bar; benchtop system for Lab- and Pilot scale.
* GEA Panda 2–10 L/h throughput

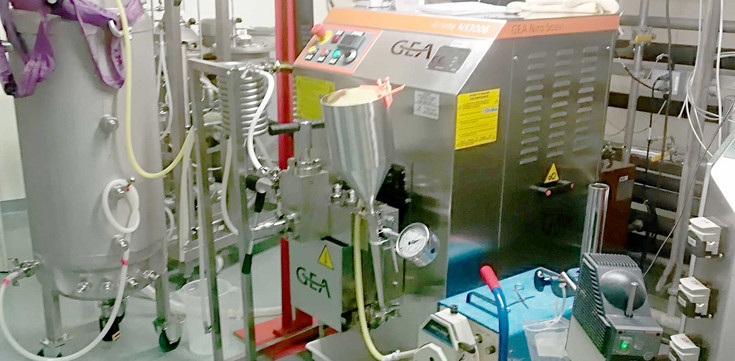

* GEA Ariete – pilot scale system, variable throughput 50-100 L/h
Image gallery
Contact for this technology
NameMarkus Luchner
Technology / Equipment webpageVisit website
Number of units2 units
Capacity1 - 50 kg/h
Summary of Extrusion
Core Facility Food and Bio Processing offers:

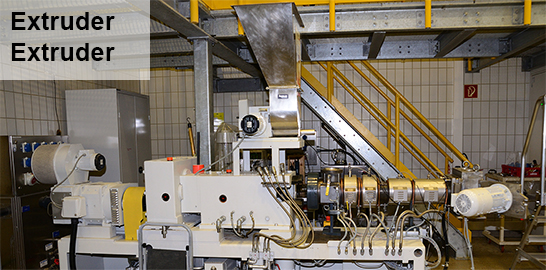

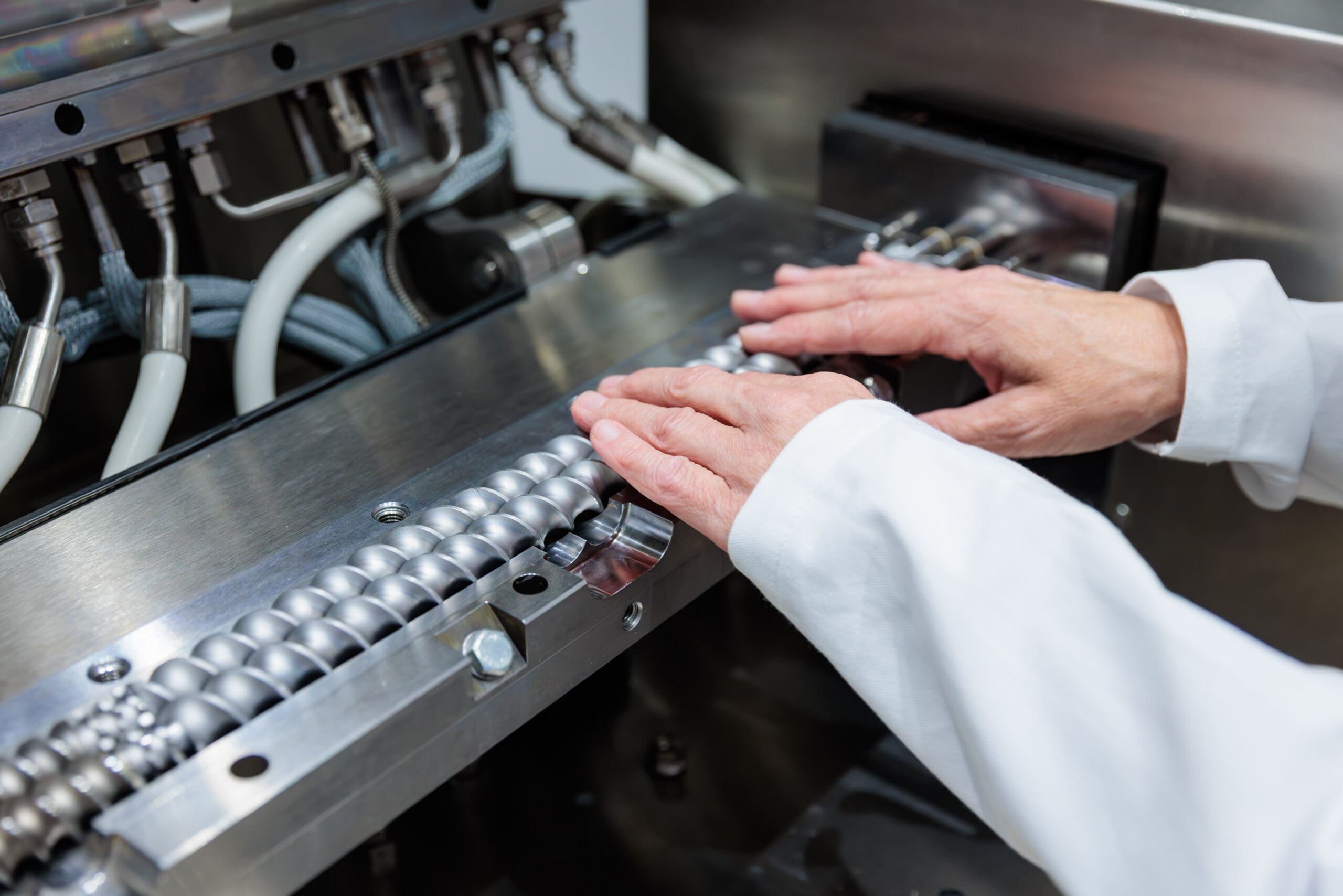

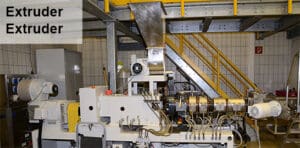

- Extruder (Cincinnati)
- Extruder (Brabender)
Low Moisture Extrusion, High Moisture Extrusion and Snack Extrusion for food and feed
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Number of units2 units
Capacity1 - 60 L/h
Summary of Homogenization
Core Facility Food and Bio Processing offers:
- High Pressure Homogenizer (APV)
- max. 400 bar
- max. 60 L/h (depending on the pressure)
- High Pressure Homogenizer (Avestin EmulsiFlex-C5)
- max. 2000 bar
- max. 1-5L/h (depending on the pressure)
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Number of units3 units
Capacity1 - 100 kg/h
Summary of Milling
Core Facility Food and Bio Processing offers:
- Rotor Beater Mill (SR300)
- Wet Mill (Alexanderwerk)
- Wet Mill (Stephan Microcut)
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Cell Cultivation
Number of units2 units
Capacity5 - 60 L (batch)
Summary of Mammalian/Insect Cell Cultivation
Stainless stell bioreactors for cultivation of eucaryotic cells controlled by an industrial process control system with different cultivation strategies
Image gallery
Contact for this technology
NameMarkus Luchner
Technology / Equipment webpageVisit website
Material technologies
Number of units2 units
Capacity0.5 - 5 kg
Summary of Coating or lamination
Core Facility Food and Bio Processing offers:
- Fluidized bed (AMMAG)

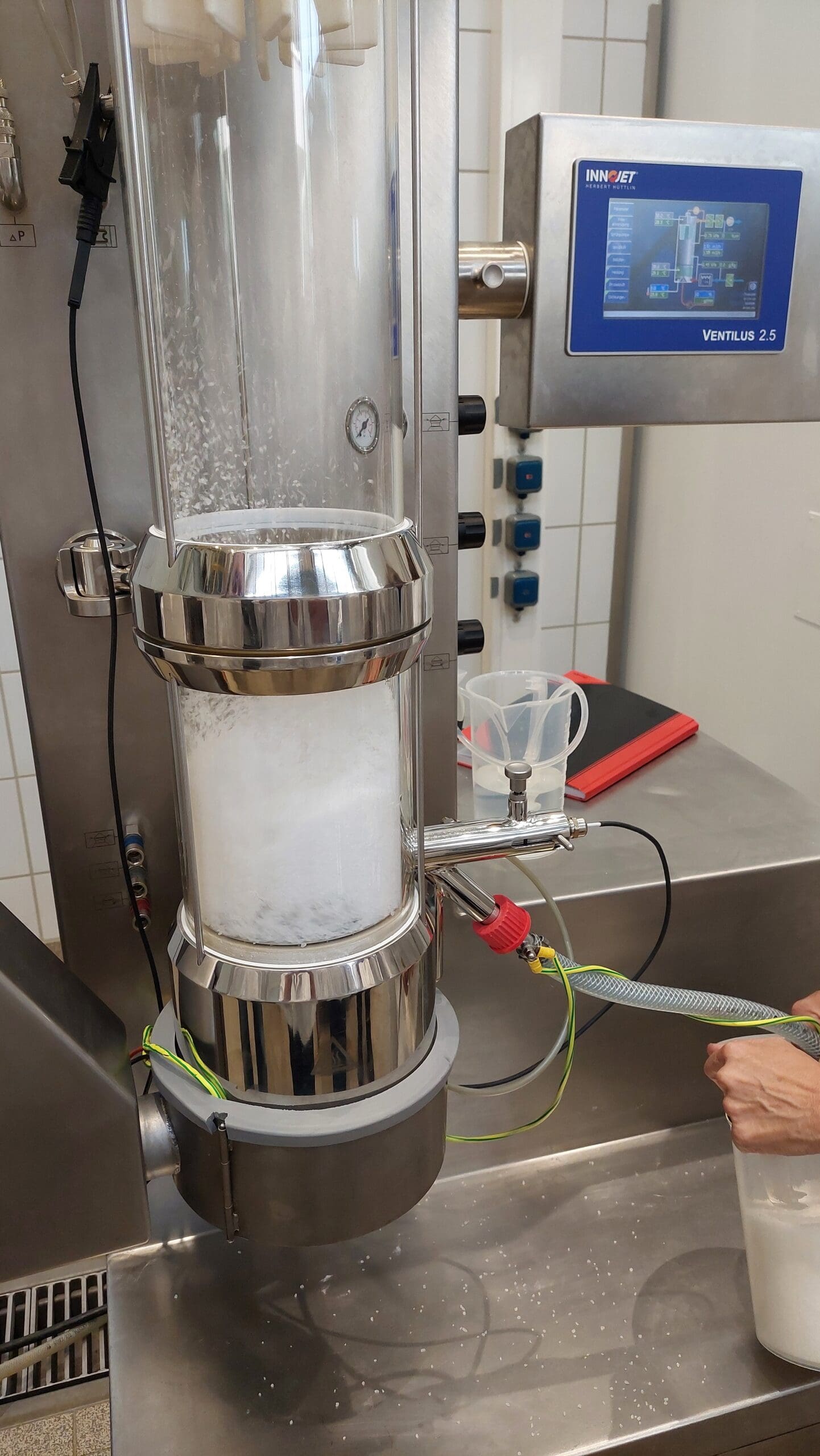

- Fluidized bed (Innojet)
Granulation/Agglomeration, Coating and Hot Melt Coating
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageWebsite not provided
Sterilisation technologies
Number of units1 units
Capacity2 - 100 L
Summary of UHT
Core Facility Food and Bio Processing offers:
- Continuous UHT treatment – incl. Deaerator and Aseptic Filling
- 20 L/h
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Number of units4 units
Capacity0.1 - 100 L
Summary of Pasteurisation
Core Facility Food and Bio Processing offers:

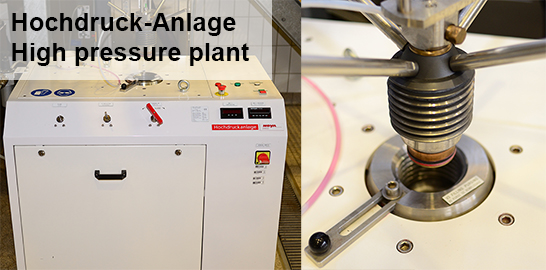

- HPP – High Pressure Pasteurization

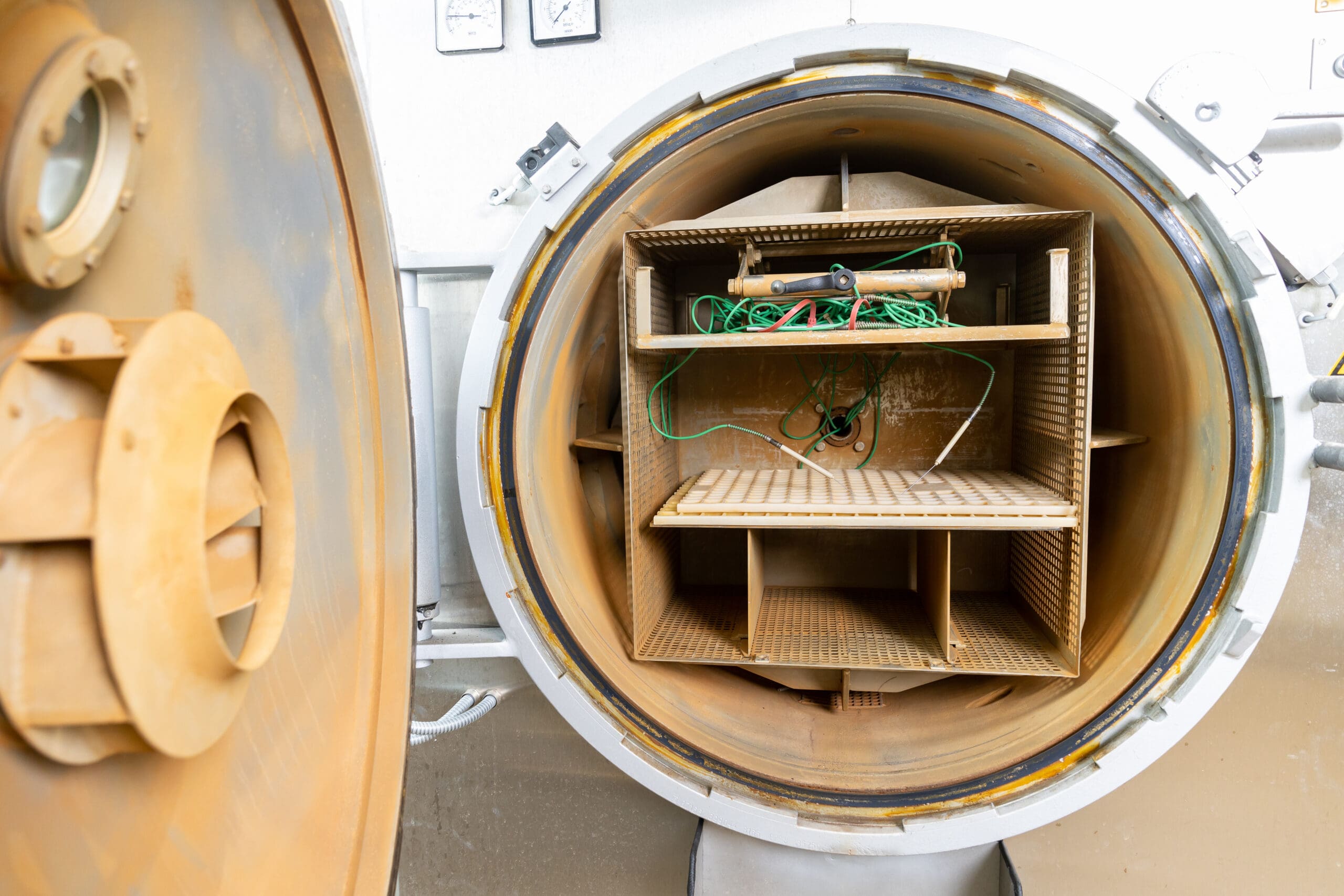

- Rotary Autoclave incl. Canning

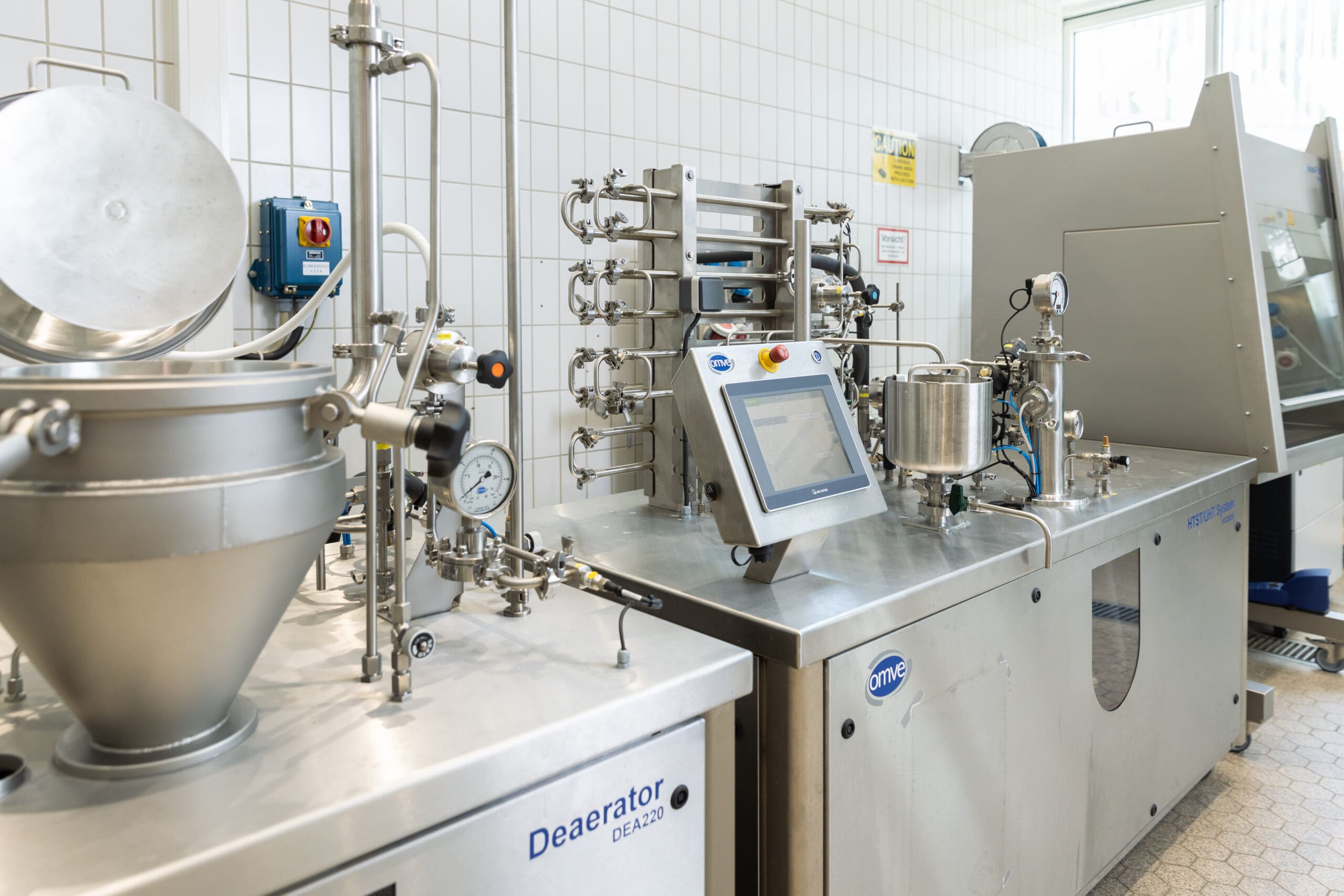

- Continuous HTST-Unit incl. Deaerator and Aseptic Filling (OMVE)
- PEF (Pulsed Electric Fields)
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Number of units2 units
Capacity0.01 - 5 L
Summary of Pulsed Electric Fields processing
Core Facility Food and Bio Processing offers:
- PEF – Pulsed Electric Fields (DIL)
- 1-4Hz
- max. 30 kV
- Batch
- PEF – Pulsed Electric Fields (Scandinova)
- 1-1000 Hz
- μs square pulses
- max. 25 kV
- Batch and continuous
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Thermal and pressure techniques
Number of units1 units
Capacity0.1 - 1 L
Summary of Ultrasonication
Core Facility Food and Bio Processing offers:

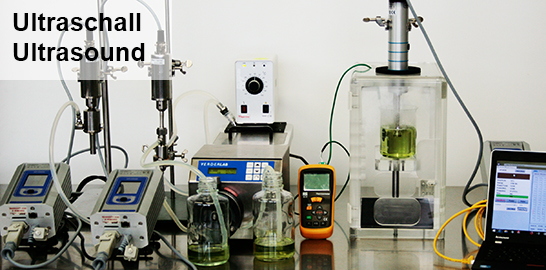

- Ultrasound (Hielscher)
Image gallery
Contact for this technology
NameRoland Pöttschacher
Technology / Equipment webpageVisit website
Address
Muthgasse 18, CF BioIndustrial Pilot Plant, 1190, Wien, Wien, AT
Extra information
Life Cycle Analysis, Engineering, Expert consultancy
